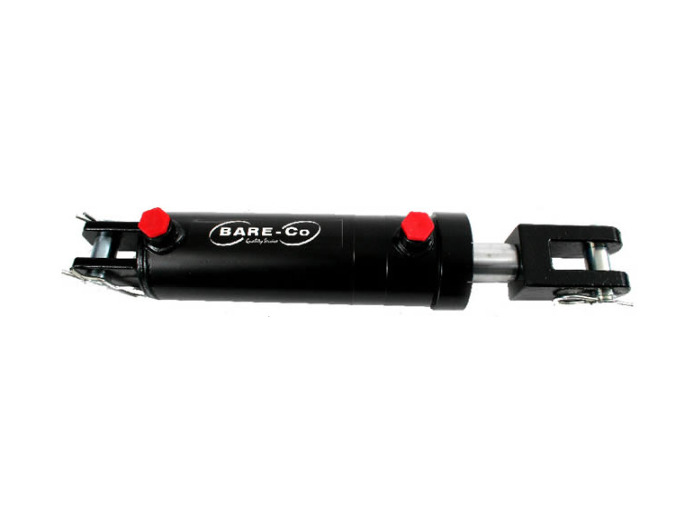

3 1/2x 16LONG BODY WELD CYL

Part No. E7558

Price:

$515.30 Excl GST

$592.60 Inc GST

Save to Wishlist

Welded Cylinder with ASAE Type Clevis End. Dimensions: Bore: 3 1/2in Stroke: 16in Shaft Diameter: 1 3/4in Closed Length: 28 1/4in Long Body Port Size: 3/4in UNF UN O-ring Pin Diameter: 1in Seal Kit: B8423 Heavy Duty High Pressure Cylinders with hard Chromium Plated Piston Rod. Rated Working Pressure 3000 PSI (20,685 kPa).

• 3.5 Inch Bore
